Node Reference

Complete reference for every node type in DialogueCraft. Nodes are organized into four categories: Dialogue, Flow, Data, and Sequence.

For a practical guide on using these nodes together, see Writing Dialogues.

---

Dialogue Nodes

Entry Node

Marks the start of a dialogue. Every dialogue has one main Entry node; additional entries can be created for alternate starting points.

Color	#2E7D32 (Forest Green)
Data class	EntryNodeData
Ports	No input. 1 output (right).

Fields:

Field	Type	Default	Description
entryPointName	string	""	Name for this entry point. Empty or "default" means the main entry. Named entries are accessed via runner.StartDialogue(asset, "name").

Runtime behavior: The DialogueRunner finds the Entry node matching the requested entry point name (or the default entry), then immediately advances to the connected output node. The Entry node itself produces no visible output.

Example use case: A dialogue with separate entry points for "first_meeting" and "return_visit", allowing the same asset to serve different contexts.

---

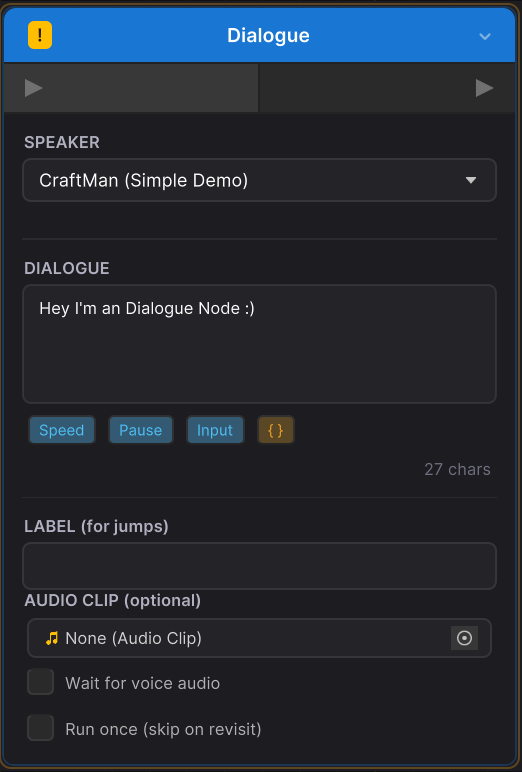

Text Node

Displays a single line of dialogue from a character.

Color	#1976D2 (Ocean Blue)
Data class	TextNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
characterId	string	null	ID of the speaking character (from CharacterDatabase).
dialogueText	string	null	The dialogue text. Supports inline typewriter tags (<speed>, <pause>, <input>) and variable substitution ({VarName}).
audioClip	AudioClip	null	Voice audio clip (Unity audio mode).
audioClipPath	string	null	Legacy audio clip path (unused in favor of direct reference).
voiceFmodEventPath	string	null	FMOD event path for voice playback (FMOD audio mode).
waitForVoice	bool	false	If true, the dialogue waits for the voice clip to finish before allowing the player to continue.
runOnce	bool	false	If true, this node only executes on the first visit. Subsequent visits skip to the next node.
nodeLabel	string	null	Optional label making this node a jump target. Inherited from base class; all node types support labels.

Runtime behavior: Resolves the speaker character from the database, applies localization and variable substitution to the text, parses and strips typewriter tags, then fires the OnDialogueLine event. If typewriter is enabled, the text is revealed character-by-character with tag-driven speed/pause/input control. After the full text is displayed (and voice audio finishes, if waitForVoice is on), the runner enters WaitingForContinue state until the player advances.

Example use case: An NPC greeting the player with a voiced line: "Welcome to my shop, {PlayerName}!"

---

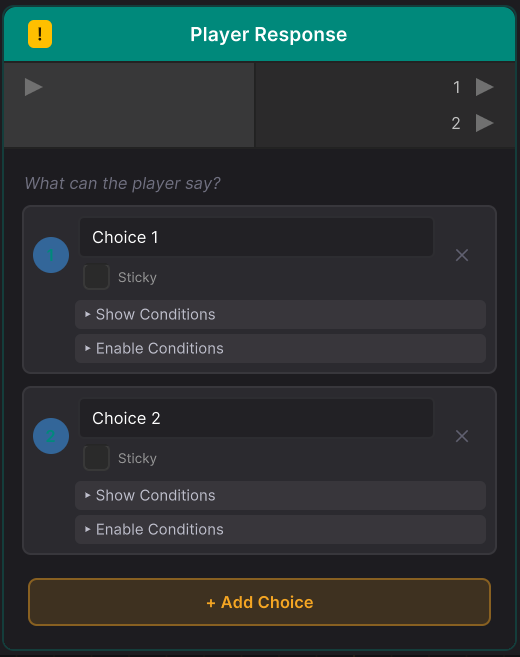

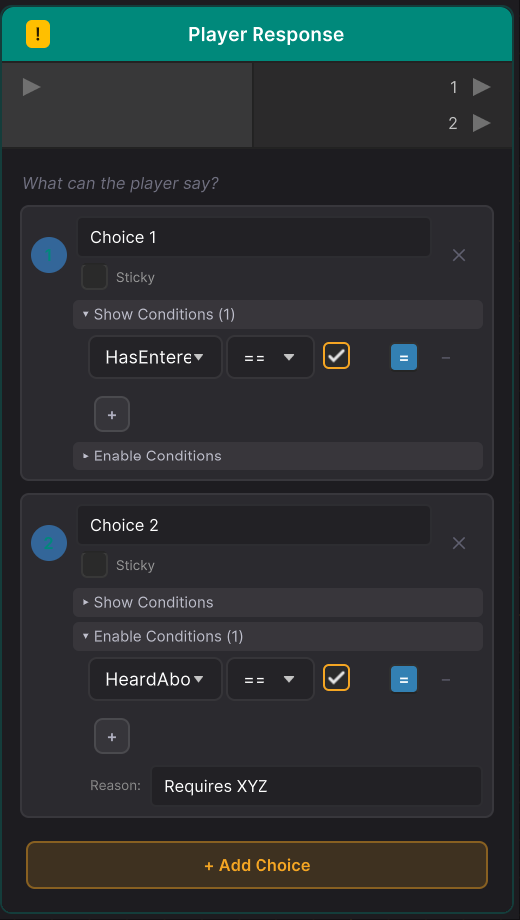

Choice Node

Presents multiple response options to the player.

Color	#00897B (Teal)
Data class	ChoiceNodeData
Ports	1 input (left). N outputs (right, one per choice).

Fields:

Field	Type	Default	Description
choices	List<DialogueChoice>	[]	List of player response options. Minimum of two.

DialogueChoice fields:

Field	Type	Default	Description
choiceId	string	auto-generated GUID	Unique identifier for this choice. Maps to an output port.
text	string	null	Display text for the choice option. Supports variable substitution.
showConditions	List<Condition>	[]	If any condition fails (AND logic), the choice is hidden entirely.
enableConditions	List<Condition>	[]	If any condition fails (AND logic), the choice is visible but greyed out.
disabledText	string	null	Reason text shown below a disabled choice (e.g., "Requires 50 gold").
isSticky	bool	false	If true, selecting this choice loops back to the choice node after the branch ends.

Runtime behavior: Evaluates showConditions on each choice (hidden if fail), then enableConditions (greyed out if fail). Applies localization and variable substitution to choice text and disabled text. Fires OnChoicesPresented with the filtered options. The runner enters WaitingForChoice state. When the player selects a choice via SelectChoice(index), the runner follows the corresponding output port. For sticky choices, the return point is pushed onto an internal stack so the dialogue returns to the choice menu when the branch ends.

Example use case: A shop menu with choices "Buy sword (50g)" (disabled if gold < 50), "Buy potion (10g)", and "Leave" where the first two are sticky.

---

Flow Nodes

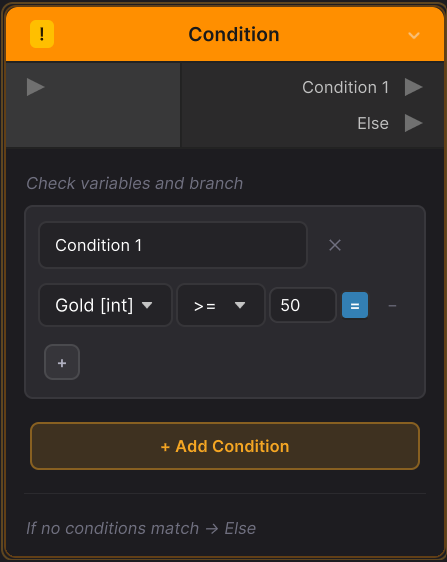

Branch Node

Routes dialogue based on variable conditions. Evaluates branches top-to-bottom and follows the first match.

Color	#FF8F00 (Amber)
Data class	BranchNodeData
Ports	1 input (left). N+1 outputs (right: one per branch case, plus Else).

Fields:

Field	Type	Default	Description
branches	List<BranchCase>	[]	Ordered list of branch cases. First passing case is followed.

BranchCase fields:

Field	Type	Default	Description
branchId	string	auto-generated GUID	Unique identifier for this branch. Maps to an output port.
label	string	"Case"	Display label shown on the output port.
conditions	List<Condition>	[]	Conditions to evaluate. Empty conditions always pass.
useOrLogic	bool	false	If true, uses OR logic (any condition passes). If false, uses AND logic (all must pass).

Runtime behavior: Iterates through branches in order. For each branch, evaluates conditions using scope-aware variable lookup (supporting Global, Actor, and Local scopes). Follows the first branch where conditions pass. If no branch matches, follows the "default" (Else) output. If no Else connection exists, advances to the next connected node.

Example use case: An NPC reacting differently based on quest progress -- "quest_complete" branch if QuestStatus == "done", "quest_active" branch if QuestStatus == "active", Else for first meeting.

---

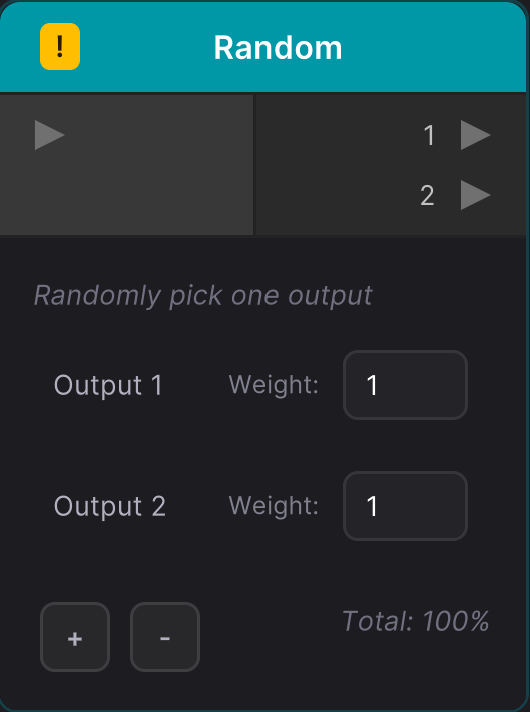

Random Node

Randomly selects one of several output paths using weighted probabilities.

Color	#0097A7 (Cyan)
Data class	RandomNodeData
Ports	1 input (left). N outputs (right, labeled 1, 2, 3...).

Fields:

Field	Type	Default	Description
outputCount	int	2	Number of outputs. Minimum 2.
weights	List<float>	[1, 1]	Weight for each output. Higher weight = higher selection probability. Negative weights are clamped to 0.

Runtime behavior: Calculates the total weight across all outputs. Generates a random value in [0, totalWeight) and selects the output whose cumulative weight range contains the random value. Follows the selected output port (output_0, output_1, etc.).

Example use case: Randomizing an NPC's greeting between three variations with equal probability.

---

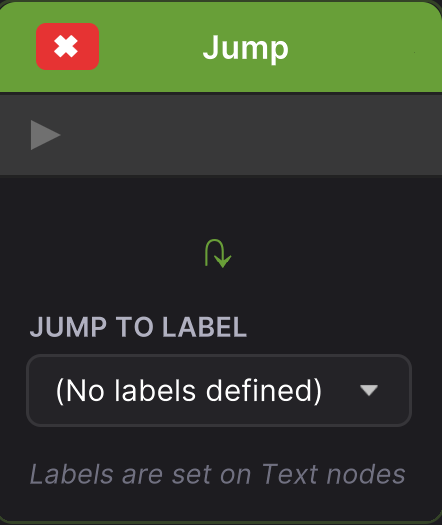

Jump Node

Jumps to another node in the same dialogue by label, allowing non-linear flow.

Color	#689F38 (Lime)
Data class	JumpNodeData
Ports	1 input (left). No output.

Fields:

Field	Type	Default	Description
targetLabel	string	null	Label of the target node to jump to.
targetNodeGuid	string	null	Fallback: target node GUID (used if label is empty).

Runtime behavior: First attempts to find a node matching targetLabel via DialogueGraph.GetNodeByLabel(). If not found, falls back to targetNodeGuid via DialogueGraph.GetNode(). If the target is found, processing continues from that node. If not found, logs a warning and advances normally.

Example use case: Returning to a conversation hub after a side branch, or creating a dialogue loop.

---

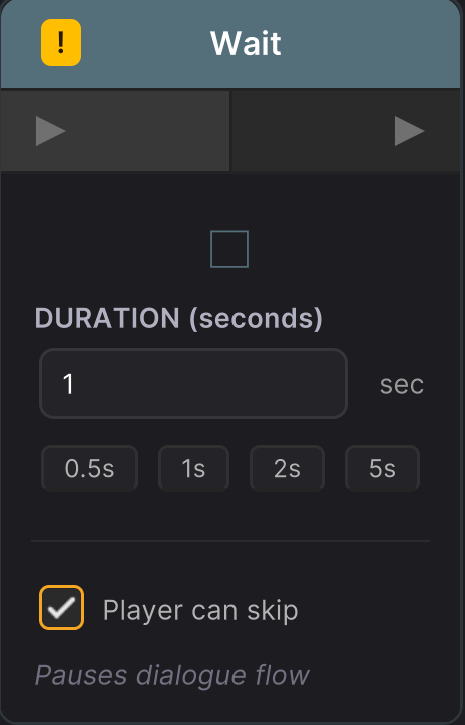

Wait Node

Pauses dialogue for a specified duration.

Color	#546E7A (Blue Gray)
Data class	WaitNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
duration	float	1.0	Wait duration in seconds.
canSkip	bool	true	If true, the player can skip the wait by pressing continue.

Runtime behavior: Sets the runner state to Waiting and starts a coroutine that counts elapsed time (respecting pause state). If canSkip is true and the player calls Continue(), the wait ends immediately. After the duration elapses (or is skipped), advances to the next node.

Example use case: A dramatic pause before a reveal, or waiting for a visual effect to play.

---

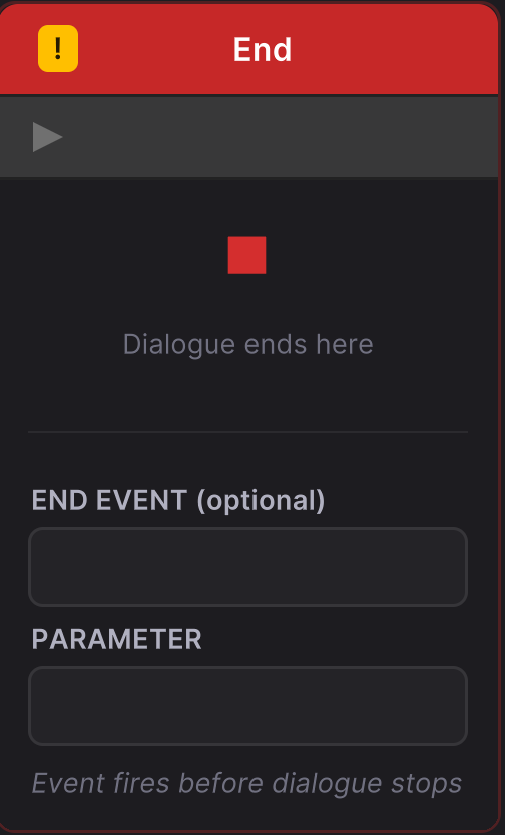

End Node

Explicitly ends the dialogue with an optional event.

Color	#C62828 (Red)
Data class	EndNodeData
Ports	1 input (left). No output.

Fields:

Field	Type	Default	Description
endEventName	string	null	Optional event name fired via OnDialogueEvent when the dialogue ends at this node.
endEventParameter	string	null	Optional parameter passed with the end event.

Runtime behavior: Fires the end event (if configured) via OnDialogueEvent. Then checks internal stacks: if a sticky choice is pending, returns to the choice menu; if inside a sub-dialogue, returns to the parent dialogue. Otherwise, calls Stop() which fires OnDialogueEnd, clears local variables, and resets cameras marked for reset.

Example use case: Ending a quest dialogue with an event "quest_accepted" that triggers quest tracking in game code.

---

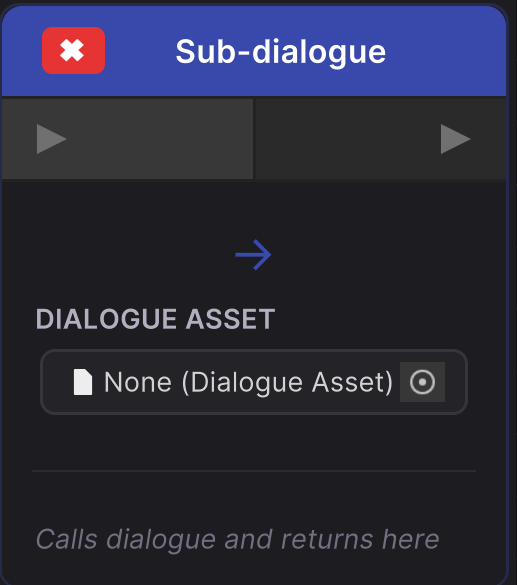

Sub-Dialogue Node

Calls another DialogueAsset and returns when it completes. Functions like a subroutine call for dialogues.

Color	#3949AB (Indigo)
Data class	SubDialogueNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
targetDialogue	DialogueAsset	null	The dialogue asset to call.
entryPointName	string	""	Optional entry point name within the target dialogue. Empty uses the default entry.

Runtime behavior: Pushes the current dialogue state (asset, graph, return node GUID) onto an internal stack. Switches to the target dialogue's graph and creates a merged variable store (sub-dialogue inherits parent variables). Finds the specified entry point and begins processing. When the sub-dialogue ends (via End node or dead end), pops the stack and continues from the Sub-dialogue node's output port in the parent.

Example use case: A shared shop interaction dialogue called from multiple NPC dialogues.

---

Data Nodes

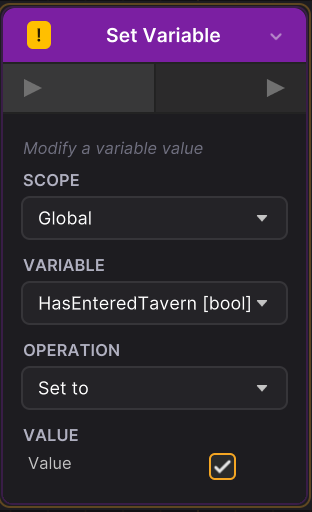

Variable Node

Sets or modifies a variable value across Global, Actor, or Local scopes.

Color	#7B1FA2 (Purple)
Data class	VariableNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
variableName	string	null	Name of the variable to modify.
operation	VariableOperation	Set	Operation to perform.
operandValue	string	null	The value to apply (serialized as string, parsed based on variable type).
scope	VariableScope	Global	Variable scope: Global, Actor, or Local.
actorId	string	null	Character ID (only used when scope is Actor).

VariableOperation enum:

Value	Description	Applies To
Set	Set the variable to the operand value.	All types
Add	Add the operand to the current value.	int, float
Subtract	Subtract the operand from the current value.	int, float
Multiply	Multiply the current value by the operand.	int, float
Divide	Divide the current value by the operand.	int, float
Toggle	Flip a boolean value (operand ignored).	bool
Append	Append the operand string to the current value.	string

Runtime behavior: Resolves the correct VariableStore based on scope (Global via SharedVariables.Global, Actor via SharedVariables.Actor(actorId), Local via SharedVariables.Local). Calls ApplyOperation() on the store with the variable name, operation, and operand. Immediately advances to the next node.

Example use case: Setting QuestAccepted = true after the player agrees to help, or incrementing Merchant.Friendship by 1 after a successful trade.

---

Event Node

Triggers a C# event or Unity SendMessage call.

Color	#E64A19 (Deep Orange)
Data class	EventNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
mode	EventMode	FireEvent	Triggering mode: FireEvent or SendMessage.
eventName	string	null	Event name (FireEvent mode).
eventParameter	string	null	Event parameter (FireEvent mode).
targetObject	string	null	Target GameObject name or actor ID (SendMessage mode).
methodName	string	null	Method to call (SendMessage mode).
messageParameter	string	null	Optional parameter for SendMessage.

Runtime behavior:

• FireEvent mode: Invokes DialogueRunner.OnDialogueEvent with the event name and parameter. Subscribe to this event in game code to handle custom logic.
• SendMessage mode: Resolves the target via DialogueActorResolver (supports character IDs, "speaker", "listener", and GameObject names). Calls SendMessage() on the resolved GameObject with the specified method name and optional parameter.

Immediately advances to the next node after firing.

Example use case: Firing a "give_item_sword" event that inventory code listens for, or calling PlayParticleEffect on an NPC via SendMessage.

---

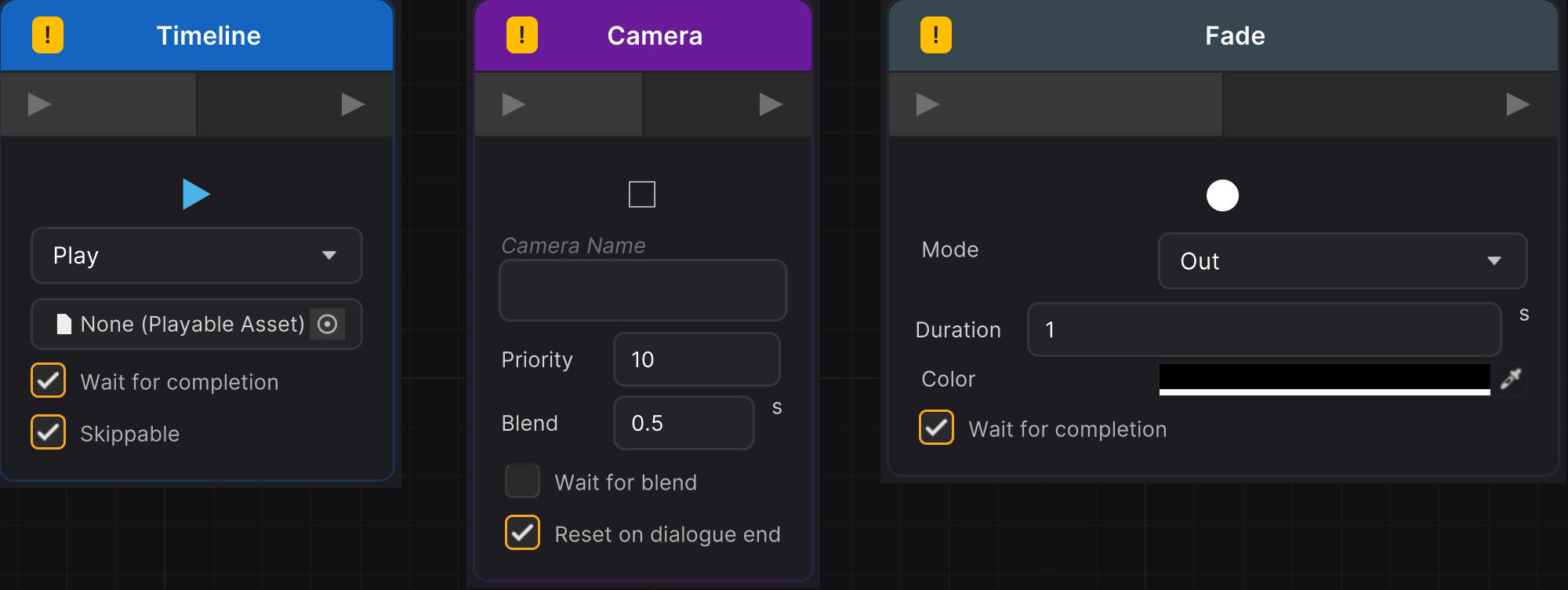

Sequence Nodes

All sequence nodes inherit from SequenceNodeData. They control cinematic and gameplay elements during dialogue and share common patterns: most have a waitForCompletion option and execute without player input.

Timeline Node

Plays, stops, pauses, or resumes a Unity Timeline asset.

Color	#1565C0 (Deep Blue)
Data class	TimelineNodeData
Ports	1 input (left). 1 output (right).
Requires	com.unity.timeline package (DIALOGUECRAFT_TIMELINE define).

Fields:

Field	Type	Default	Description
timeline	UnityEngine.Object	null	The PlayableAsset (Timeline) to control.
action	TimelineAction	Play	Action: Play, Stop, Pause, or Resume.
waitForCompletion	bool	true	Wait for the timeline to finish before advancing (Play action only).
canSkip	bool	true	If true, the player can skip the playing timeline (Play action only).

TimelineAction enum:

Value	Description
Play	Play the timeline from the start.
Stop	Stop the timeline and reset to time 0.
Pause	Pause the timeline at the current position (sets playable speed to 0).
Resume	Resume a paused timeline (restores playable speed to 1).

Runtime behavior: For Play action, first searches the scene for an existing PlayableDirector with the assigned asset (preserving track bindings). If found, plays it directly; otherwise falls back to DialogueTimelineController. For Stop/Pause/Resume, locates the director and controls it accordingly. If waitForCompletion is true, the runner polls the director state until playback completes or the player skips.

Example use case: Playing a cutscene showing a bridge collapsing during dialogue.

---

Camera Node

Switches to a Cinemachine virtual camera by name.

Color	#6A1B9A (Purple)
Data class	CameraNodeData
Ports	1 input (left). 1 output (right).
Requires	com.unity.cinemachine package (optional; DIALOGUECRAFT_CINEMACHINE define).

Fields:

Field	Type	Default	Description
cameraName	string	null	Name of the Cinemachine virtual camera GameObject to activate.
priority	int	10	Priority to set when activating the camera.
blendTime	float	0.5	Camera blend duration in seconds. 0 = instant cut.
resetOnDialogueEnd	bool	true	If true, the camera priority is reset when the dialogue ends.
waitForBlend	bool	false	If true, wait for the blend to complete before advancing to the next node.

Runtime behavior: Activates the named camera via DialogueCameraController with the specified priority. If resetOnDialogueEnd is true, the camera name is tracked and deactivated when the dialogue stops. If waitForBlend is true, waits for blendTime seconds before advancing.

Example use case: Cutting to a close-up camera during an important dialogue reveal.

---

Fade Node

Fades the screen in or out using a full-screen overlay.

Color	#37474F (Dark Gray)
Data class	FadeNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
mode	FadeMode	Out	In (from color to transparent, revealing scene) or Out (from transparent to color, hiding scene).
duration	float	1.0	Fade duration in seconds.
color	Color	black	Fade overlay color.
waitForCompletion	bool	true	If true, wait for the fade to finish before advancing.

Runtime behavior: Fires a dialogue event (Fade_In or Fade_Out) with the duration as parameter. Uses the built-in FadeOverlay singleton for the visual effect. If waitForCompletion is true, waits until the fade animation completes before advancing.

Example use case: Fading to black before a scene transition, or fading in to reveal a new location.

---

Audio Node

Plays or stops an audio clip through the configured audio backend (Unity or FMOD).

Color	#E65100 (Orange)
Data class	AudioNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
audioClip	AudioClip	null	Audio clip to play (Unity audio mode).
fmodEventPath	string	null	FMOD event path, e.g. "event:/Music/Combat" (FMOD audio mode).
fmodParameterName	string	null	Optional FMOD parameter name for runtime control.
fmodParameterValue	float	0	FMOD parameter value.
volume	float	1.0	Playback volume (0 to 1).
channel	AudioChannel	SFX	Audio routing channel: SFX, Music, Voice, or Ambient.
waitForCompletion	bool	false	If true, wait for the audio to finish before advancing (ignored for looping audio).
loop	bool	false	If true, loop the audio continuously.
stopInstead	bool	false	If true, stop audio on the specified channel instead of playing.
fadeInDuration	float	0	Fade-in duration in seconds. 0 = instant start.
fadeOutDuration	float	0	Fade-out duration for stop commands. 0 = instant stop.
eventOnly	bool	false	If true, only fire dialogue events without playing audio. Game code handles playback externally.

Runtime behavior: If eventOnly is true, fires a dialogue event and advances. If stopInstead is true, stops audio on the channel (with optional fade-out) and advances. Otherwise, builds an AudioPlaybackRequest and plays via AudioProviderManager. If waitForCompletion is true and audio is not looping, waits for playback to complete. Fires dialogue events like Audio_Play_Music for external tracking.

Example use case: Starting background battle music with a 1-second fade-in, or playing a one-shot sound effect for a door opening.

---

Actor Node

Controls character positioning and visibility at runtime.

Color	#00796B (Teal)
Data class	ActorNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
actorId	string	null	Actor identifier: character ID, "speaker", "listener", "player", "tag:TagName", or GameObject name.
action	ActorAction	LookAt	Action to perform.
targetId	string	null	Target for LookAt/Face/MoveTo: another actor ID, transform name, or waypoint.
duration	float	0.5	Duration for smooth movement/rotation. 0 = instant.
waitForCompletion	bool	true	Wait for the action to complete before advancing.
activeState	bool	true	For SetActive action: true = show, false = hide.

ActorAction enum:

Value	Description
LookAt	Rotate head/eyes to look at the target.
Face	Rotate the whole body to face the target (Y-axis locked for upright rotation).
MoveTo	Walk/move to the target position. Uses NavMeshAgent if available; otherwise lerps.
SetActive	Show or hide the actor's GameObject.

Runtime behavior: Resolves the actor GameObject via DialogueActorResolver. For SetActive, sets the GameObject's active state immediately and advances. For LookAt/Face/MoveTo, resolves the target transform and starts a coroutine: rotation uses Quaternion.Slerp over the duration; movement uses NavMeshAgent.SetDestination if available or Vector3.Lerp as fallback. After completion, advances to the next node.

Example use case: Having an NPC walk to a waypoint and turn to face the player before speaking.

---

Animate Node

Controls character animations via Unity's Animator component.

Color	#C2185B (Pink)
Data class	AnimateNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
actorId	string	null	Actor identifier (same resolution as Actor node).
mode	AnimateMode	Trigger	How to control the Animator.
parameterName	string	null	Animator parameter name (for Trigger/SetBool/SetInt/SetFloat) or state name (for PlayState).
boolValue	bool	false	Bool value (SetBool mode).
intValue	int	0	Int value (SetInt mode).
floatValue	float	0	Float value (SetFloat mode).
layer	int	0	Animator layer (PlayState mode).
crossfadeDuration	float	0.25	Crossfade transition duration in seconds (PlayState mode).
waitForCompletion	bool	false	Wait for animation to complete (PlayState mode only).

AnimateMode enum:

Value	Description
Trigger	Set a trigger parameter (one-shot animations).
SetBool	Set a bool parameter (state toggles).
SetInt	Set an integer parameter (blend trees).
SetFloat	Set a float parameter (blend trees).
PlayState	Crossfade to a specific state by name.

Runtime behavior: Resolves the Animator via DialogueActorResolver.ResolveAnimator(). For Trigger/SetBool/SetInt/SetFloat modes, sets the parameter immediately and advances. For PlayState mode, calls CrossFadeInFixedTime() on the target state; if waitForCompletion is true, waits for the crossfade plus the animation duration before advancing.

Example use case: Triggering a "wave" animation when an NPC greets the player, or setting isSitting to true when an NPC sits down.

---

Signal Node

Waits for an external game signal before continuing the dialogue. Bridges game events with dialogue flow.

Color	#F9A825 (Yellow)
Data class	SignalNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
signalName	string	null	Signal name to wait for. Case-insensitive matching.
timeout	float	0	Maximum wait time in seconds. 0 = wait forever.
continueOnTimeout	bool	true	If true, continue the dialogue when the timeout expires. If false, stop the dialogue entirely.

Runtime behavior: Sets the runner state to Waiting and stores the signal name as pending. A coroutine polls for the signal each frame. Game code calls DialogueRunner.SendSignal("name") to deliver the signal. When the signal is received, the runner advances to the next node. If a timeout is specified and expires before the signal arrives, the runner either continues or stops based on continueOnTimeout.

Example use case: Waiting for a door animation to finish (runner.SendSignal("door_opened")) or pausing dialogue until a battle completes.

---

Shake Node

Shakes the camera or UI for visual impact effects.

Color	#E65100 (Orange)
Data class	ShakeNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
intensity	float	0.5	Shake intensity (0 to 1 recommended range).
duration	float	0.3	Shake duration in seconds.
target	ShakeTarget	Camera	What to shake.
waitForCompletion	bool	false	If true, wait for the shake to finish before advancing.

ShakeTarget enum:

Value	Description
Camera	Shake the main camera. Uses Cinemachine Impulse when available.
UI	Shake the dialogue UI panel.
Both	Shake both camera and UI simultaneously.

Runtime behavior: Fires a Shake dialogue event with intensity, duration, and target as parameters. Calls DialogueShakeController.ShakeCamera() and/or DialogueShakeController.ShakeUI() based on the target. If waitForCompletion is true, waits for the shake duration before advancing.

Example use case: A camera shake when an explosion occurs during dialogue.

---

Spawn Node

Instantiates or destroys GameObjects during dialogue.

Color	#388E3C (Green)
Data class	SpawnNodeData
Ports	1 input (left). 1 output (right).

Fields:

Field	Type	Default	Description
action	SpawnAction	Spawn	Action: Spawn (instantiate) or Destroy.
prefab	GameObject	null	Prefab to instantiate (Spawn action only).
spawnPointId	string	null	Spawn point identifier: actor ID, "speaker", "listener", "tag:TagName", or Transform/GameObject name.
parentToSpawnPoint	bool	false	If true, parent the spawned object to the spawn point transform.
objectName	string	null	For Spawn: name assigned to the spawned instance. For Destroy: name of the GameObject to find and destroy.
destroyDelay	float	0	Delay before destroying in seconds (Destroy action only).

SpawnAction enum:

Value	Description
Spawn	Instantiate a prefab at the spawn point.
Destroy	Find and destroy a GameObject by name.

Runtime behavior: For Spawn, resolves the spawn point via DialogueActorResolver.ResolveTransform(). Instantiates the prefab at the spawn point's position/rotation (or at origin if no spawn point). If parentToSpawnPoint is true, parents the instance to the spawn point with zeroed local position/rotation. Names the instance if objectName is set. Fires a Spawn dialogue event. For Destroy, finds the target via GameObject.Find() and destroys it (with optional delay). Fires a Destroy dialogue event. Advances immediately after the action.

Example use case: Spawning a quest item on a table during a cutscene, or destroying a barrier after an NPC opens a gate.

---

Utility Nodes

Comment Node

Designer notes placed on the graph. No runtime effect.

Color	#555566 (Gray)
Data class	CommentNodeData
Ports	None.

Fields:

Field	Type	Default	Description
commentText	string	null	The comment text.
backgroundColor	Color	(0.2, 0.2, 0.2, 0.8)	Background color of the comment node.

Runtime behavior: Completely skipped. The DialogueRunner immediately advances to the next node. Comment nodes exist purely for editor-time organization.

Example use case: Annotating a complex branch with "This path handles the evil ending."

---

Shared Data Types

Condition

Used by Branch nodes and Choice node conditions. Supports comparing a variable to a literal value or to another variable, with scope-aware lookup.

Field	Type	Default	Description
variableName	string	null	Name of the variable to check.
conditionOperator	ConditionOperator	Equals	Comparison operator.
compareValue	string	null	Value to compare against (literal or variable name if compareToVariable is true).
scope	VariableScope	Global	Scope of the variable being checked.
actorId	string	null	Actor ID when scope is Actor.
compareToVariable	bool	false	If true, compareValue is treated as a variable name for variable-to-variable comparison.
compareScope	VariableScope	Global	Scope of the compare variable (when compareToVariable is true).
compareActorId	string	null	Actor ID for the compare variable (when compareScope is Actor).

NodeConnection

Represents an edge between two nodes in the graph.

Field	Type	Description
fromNodeGuid	string	GUID of the source node.
fromPortId	string	Port identifier on the source node.
toNodeGuid	string	GUID of the target node.
toPortId	string	Port identifier on the target node.

GroupData (Comment Box)

Resizable background region for visually organizing nodes. Moving the box moves overlapping nodes; deleting the box does not delete contained nodes.

Field	Type	Default	Description
guid	string	auto-generated	Unique identifier.
title	string	"Comment"	Title text shown in the header.
position	Vector2	--	Position on the graph canvas.
size	Vector2	(300, 200)	Width and height of the box.
color	Color	(0.15, 0.15, 0.15, 0.8)	Background color.
hoverText	string	""	Tooltip text shown when hovering over the header.
